รายละเอียดรอกโซ่ไฟฟ้า รุ่น LX

      ♦ Electric chain hoist for single girder

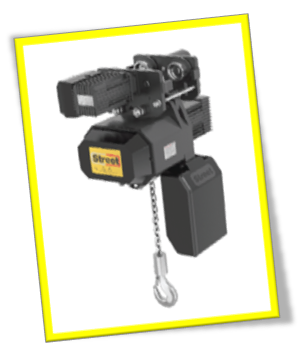

<<< LX CHAIN HOIST WITH EYE SUPENSION
(Standard Headroom)



Load Capacity : of 0.5 Tons. to 5 Tons.
Lifting height  : 6 Metre.


- Standard 48 Volt Push button pendant for solo hoist
- Quick release electric with plug & socket
- Single phase 230v. and 110v. solutions.

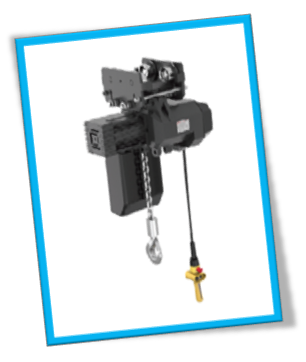

LX CHAIN HOIST WITH PUSH TROLLEY >>>

(Standard Headroom)



Load Capacity : of 0.5 Tons. to 5 Tons.
Lifting height  : 6 Metre.


- Standard 48 Volt Push button pendant for solo hoist
- Heavy duty long life hoist disc brack
- Single or dual speed

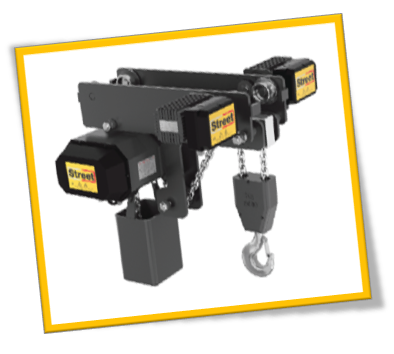

<<< LX CHAIN HOIST
WITH GEARED MOTOR TROLLEY
(Standard Headroom)



Load Capacity : of 0.5 Tons. to 5 Tons.
Lifting height  : 6 Metre.


- Standard 48 Volt Push button pendant for solo hoist
- Heavy duty long life hoist disc brack
- Single or dual speed

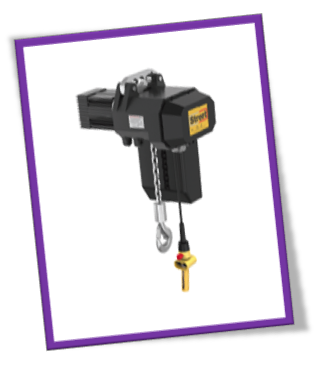

LX CHAIN HOIST >>>
WITH GEARED MOTOR TROLLEY
(Standard Headroom)



Load Capacity : of 0.5 Tons. to 5 Tons.
Lifting height  : 6 Metre.


- Power 3 phase motor
- Class "F" insulation
- Heavy duty long life hoist disc brack
- Single or dual speed


LX Electric Hoist Single Girder Specifications


**Remark : Excerpt from our from our product porifolio. Above are standard model, Special specification is available for buyer, Please contact Sistributor.
The LX electric chain hoist features :

 400V (+/-10%) 3ph / 50Hz
♦ 48V Control voltage
 Suitable for indoor use with tempererature range of -20C to + 50C at an altitude less than 1000m above sea level and in an atmosphere of normal humdity (5-95% non condensing) free of contamination and harmful deposits.
 Standard for 6m height of lift complete with chain bucket. Where greater height of lift is required use price/metre add-on up tomax. 10m height of lift. Add on price includes larger chain bucket to suit height of lift specified up to max.
 Load Limiting device (rated capacity limiter) by means of a slipping clutch
 Hoist upper and lower limit switch by means of a slipping clutch (standard on LX03 models, optional on LX01 models)
 Fully sealed compact hoist gearbox-oil bath lubricated. in line hardened&treated helical gear for smooth & smooth & quiet operation
♦ Eegonmic hook forging to DIN15401 fitted with spring operated safety catch
♦ Hight tensile galvanised load chain
 Finish - RAL 7021 black grey
