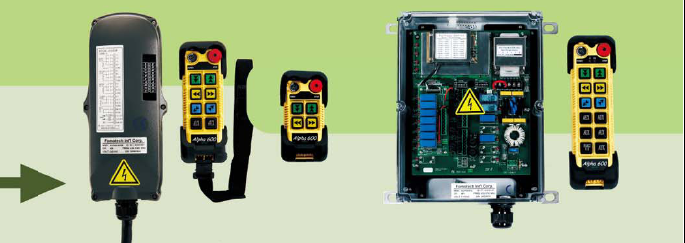

| ALPHA 604A | รีโมทคอนโทรล 4 ปุ่ม 1 สปีด |
| ALPHA 604B | รีโมทคอนโทรล 4 ปุ่ม 2 สปีด |
| ALPHA 608A | รีโมทคอนโทรล 8 ปุ่ม 1 สปีด |
| ALPHA 608B | รีโมทคอนโทรล 6 ปุ่ม 2 สปีด + 1 ปุ่มเลือก I/II |
| ALPHA 612D | รีโมทคอนโทรล 10 ปุ่ม 2 สปีด + 2 ปุ่ม1 สปีด |
| ALPHA 612E-1 | รีโมทคอนโทรล 6 ปุ่ม 2 สปีด + 5 ปุ่ม 1 สปีด + 1 ปุ่มเลือก I/II |
| SPECIFICATIONS |
| Transmitter Unit | Receiver Unit | |||||
Frequency Range | : | 433, 434 MHz | Frequency Range | : | 433, 434 MHz | |
| Transmitting Range | : | 100 Meters. | Channel Spacing | : | 25KHz | |
| Hamming distance | : | 6 | Hamming Distance | : | 6 | |
| Channel Spacing | : | 25 KHz | Frequency Control | : | Synthesizer (PLL) | |
| Frequency Drift | : | < 5ppm @ -25°C~+75°C | Frequency Drift | : | < 5ppm @ -20°C~+70°C | |
| Frequency Deviation | : | < 1ppm @ 25°C | Frequency Deviation | : | < 1ppm @ 25°C | |
| Spurious Emission | : | - 50dB | Sensitivity | : | < -115dBm | |
| Transmitting Power | : | 0.1 Mw - 10 mW | Antenna lmpedance | : | 50ohms | |
| Emission | : | F1D | Date Decoder Referenc | : | Quartz Crtstals | |
| Antenna lmpedance | : | 50 ohms | Responding Time | : | 40ms (Normal) | |
| Enclosure Rating | : | IP-66 | Enclosure Rating | : | IP-66 | |
| Source Voltage | : | Ni-MH AA size battery 2.4V | Source Voltage 604~608 | : | DC12-25V•AC48, 110~240V | |
| Current Drain | : | 10 ~ 18 mA | 50/60Hz | |||
| Operating Temperature | : | -10°C ~ +50°C | Source Voltage 612 | : | AC25-50V, 110~240V, 380-460V | |
| Transmitting Power | : | <30 mA @3.5V (various from | 50/60Hz | |||
| Consumption | encoding mode and transmitting | Power Consumption | : | 11VA | ||
| power) | Operating Temperature | : | -10°C~+ 70°C | |||
| Operating time | : | consecutive 120hrs @batteries | Output Contact Rating | : | 250V @10A | |
| full (2500mA) Band 433MHz, | Dimension (604 Models) | : | 310 x 134 x 12 mm. | |||
| transmitting power 1mW. | (608 Models) | : | 310 x 134 x 72 mm. | |||
| Dimension (604 Models) | : | 140 x 68 x 30 mm. | (612 Models) | : | 300 x 230 x 86 mm. | |
| (608 Models) | : | 189 x 68 x 30 mm. | Weight (604 Models) | : | 1,625g (include batteries) | |
| (612 Models) | : | 235 x 68 x 30 mm. | (608 Models) | : | 2,000g (include batteries) | |
| Weight (604 Models) | : | 240g (include batteries) | (612 Models) | : | 3,400g (include batteries) | |
| (608 Models) | : | 300g (include batteries) | ||||
| (612 Models) | : | 350g (include batteries) | ||||
| Charger Unit | |||
Dimension | : | 120 x 105 x 105 mm. | |
| Voltage | : | 100-240V 50/60Hz | |
| Power Consumption | : | max 7 Watt | |
| Operating Temperature | : | 0°C ~+ 40°C | |
| Heat Ventilation | : | Temperature control fan | |
| Charging Current | : | about 600mA @3V | |
| Charging Time | : | about 5hrs @2500mA | |
| Charging Detection | : | -AV + temperature | |
